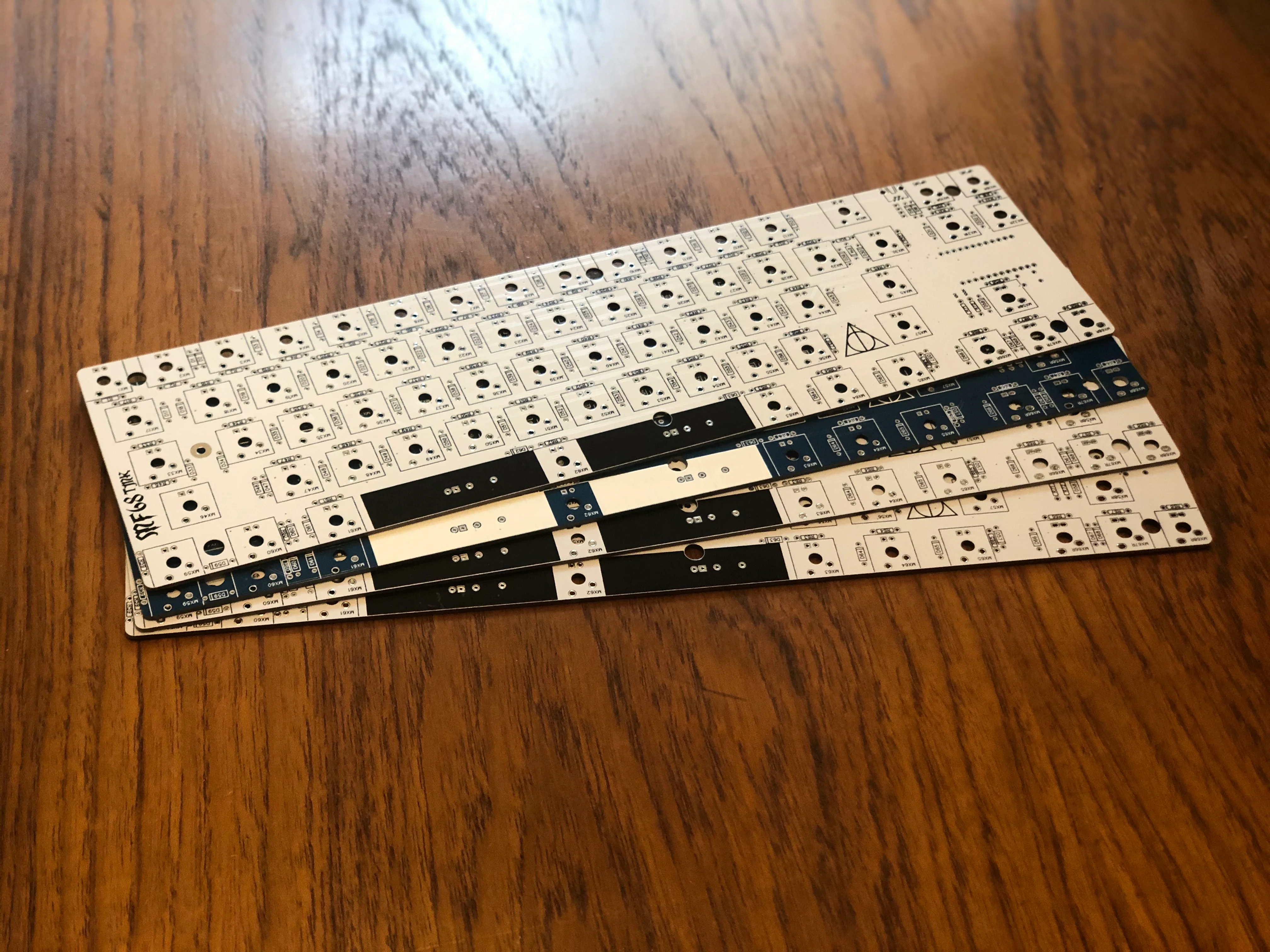

Tragicforce 68 - MF68 TMK/QMK - Magicforce 68 PCB Replacement Kit (Discontinued)

Looking for the ability to reprogram your Magicforce 68 keyboard or have backlighting? Here's a replacement board for it that lets you use custom firmware like TMK or QMK so you can set your own keymap.

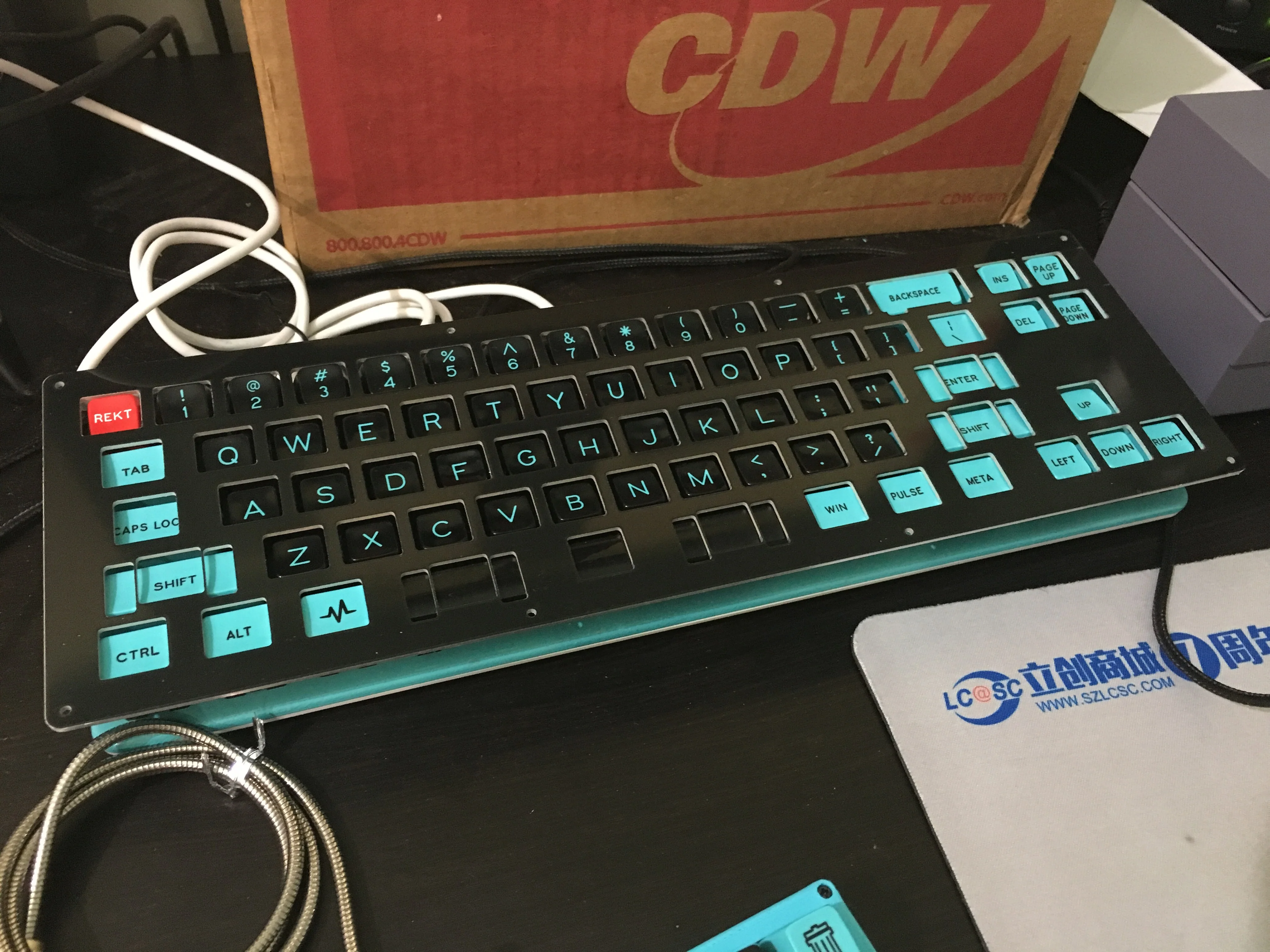

Plate kits designed for stand-alone usage (i.e. no Magicforce 68 case needed):

  • Plate Kit: Top plate, bottom plate, standoffs, and screws. Top plate compatible with Rev. 1.1 PCB only using PCB-mount stabilizers, does not support Plate-mount stabilizers
  • Plate Kit + Rev. 1.1 PCB Base Kit: Same as Plate Kit above plus:
    • Rev. 1.1 PCB
    • Mini-USB port
    • 4.7kΩ resistor for MOSFET
    • 1 AO3416 MOSFET
    • Micro USB connector to create pigtail (wires not included)
    • Reset switch

Looking for the ability to reprogram your Magicforce 68 keyboard or have backlighting? Here's a replacement board for it that lets you use custom firmware like TMK or QMK so you can set your own keymap.

Plate kits designed for stand-alone usage (i.e. no Magicforce 68 case needed):

  • Plate Kit: Top plate, bottom plate, standoffs, and screws. Top plate compatible with Rev. 1.1 PCB only using PCB-mount stabilizers, does not support Plate-mount stabilizers
  • Plate Kit + Rev. 1.1 PCB Base Kit: Same as Plate Kit above plus:
    • Rev. 1.1 PCB
    • Mini-USB port
    • 4.7kΩ resistor for MOSFET
    • 1 AO3416 MOSFET
    • Micro USB connector to create pigtail (wires not included)
    • Reset switch
